Oracle Cloud Infrastructure Documentation

Reference for Language

This guide lists the predefined objects in OCI Resource Analytics for the Language service. You can find information about views, entity relationships, subject areas, and sample queries.

Views

This section provides information about views within OCI Resource Analytics Language and their columns, data types, keys, and the referred view and column names. The following views are available:

Language Views
Name Description
LANGUAGE_ENDPOINT_DIM_V This view stores information about the details of the endpoint.
LANGUAGE_MODEL_DIM_V This view stores information about the details of a model.
LANGUAGE_PROJECT_DIM_V This view stores information about the details of a project, which enables users to organize their project resources.
LANGUAGE_FACT_V Fact table for the Language service.

The suffixes in the view names specify the view type:

  • FACT_V: Fact
  • DIM_V: Dimension

Relationship Diagram

This section provides diagrams that define the logical relationship of a fact table with different dimension tables.

The contents of each view and their relationships are listed in the following file: Language views.

LANGUAGE_FACT_V

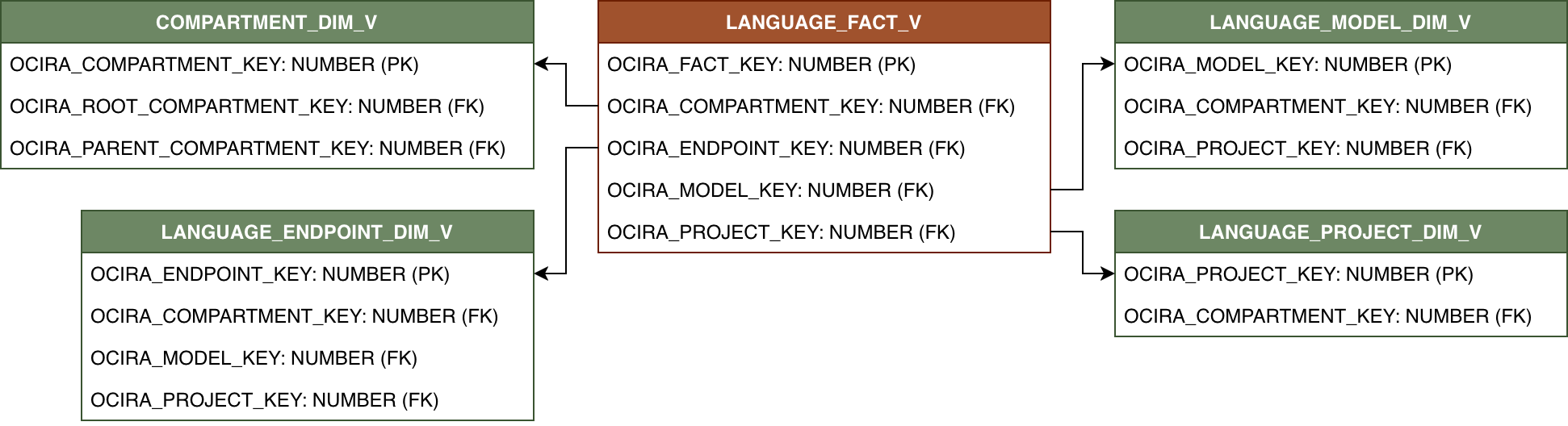

Relationship diagram showing LANGUAGE_FACT_V and its related dimension tables.

Sample Queries

Sample queries for Language.

List the number of models associated with an endpoint.

SELECT
 ENDPOINT_ID,
 COUNT(MODEL_ID) AS MODEL_COUNT
FROM OCIRA.LANGUAGE_FACT_V F
GROUP BY ENDPOINT_ID;

Data Lineage

The Customer Experience Semantic Model Lineage spreadsheet and Metric Calculation Logic spreadsheet for Language provides an end-to-end data lineage summary report for physical and logical relationships in your data.

For more information, see Data Lineage.

Subject Areas

This section provides information on the subject areas with data you maintain in Language. These subject areas, with their corresponding data, are available for you to use when creating and editing analyses and reports. The information for each subject area includes:

  • Description of the subject area.

  • Business questions that can be answered by data in the subject area, with a link to more detailed information about each business question.

  • Job-specific groups and duty roles that can be used to secure access to the subject area, with a link to more detailed information about each job role and duty role.

  • Primary navigation to the work area that's represented by the subject area.

  • Time reporting considerations in using the subject area, such as whether the subject area reports historical data or only the current data. Historical reporting refers to reporting on historical transactional data in a subject area. With a few exceptions, all dimensional data are current as of the primary transaction dates or system date.

  • The lowest grain of transactional data in a subject area. The lowest transactional data grain decides how data are joined in a report.

  • Special considerations, tips, and things to look out for in using the subject area to create analyses and reports.

The subject area is:
