Reference for Fusion Applications Environment Management

This section provides information about views within OCI Resource Analytics Fusion Applications Environment Management and their columns, data types, keys, and the referred view and column names. The following views are available:

The suffixes in the view names designate the view type:

• FACT_V: Fact
• DIM_V: Dimension

The contents of each view and their relationships are listed in the following file: Fusion Applications Environment Management views.

Each tab in the Excel spreadsheet contains the details of a view.

This section provides diagrams that define the logical relationship of a fact table with different dimension tables.

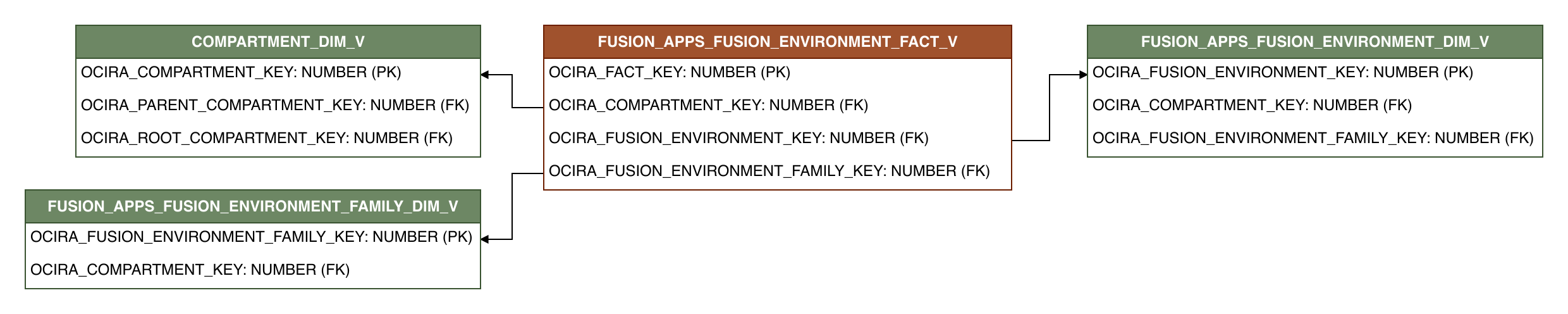

This diagram shows the relationship of the Fusion Applications Environment Management fact view with different dimension views.

FUSION_APPS_FUSION_ENVIRONMENT_FACT_V

Relationships exist among dimensions. Dimensions can be joined directly to each other. This diagram shows the relationship between dimension views.

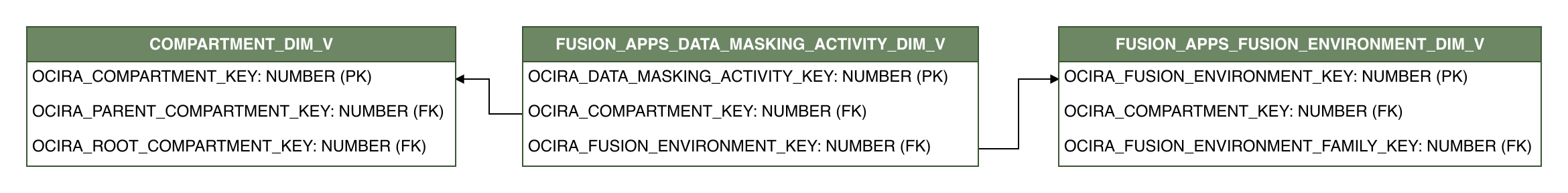

FUSION_APPS_DATA_MASKING_ACTIVITY_DIM_V

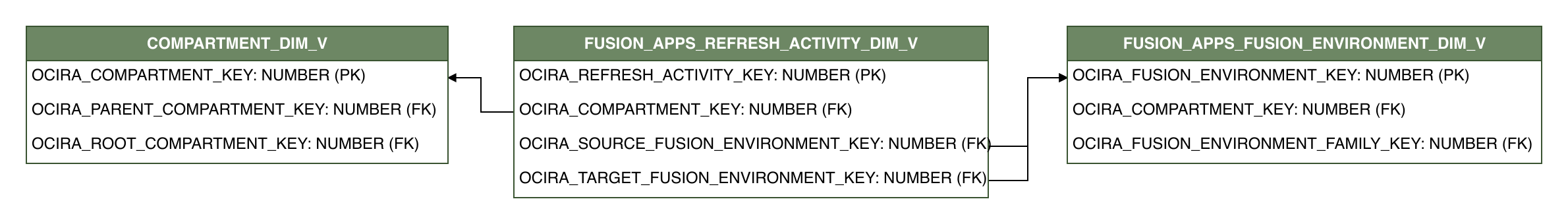

FUSION_APPS_REFRESH_ACTIVITY_DIM_V

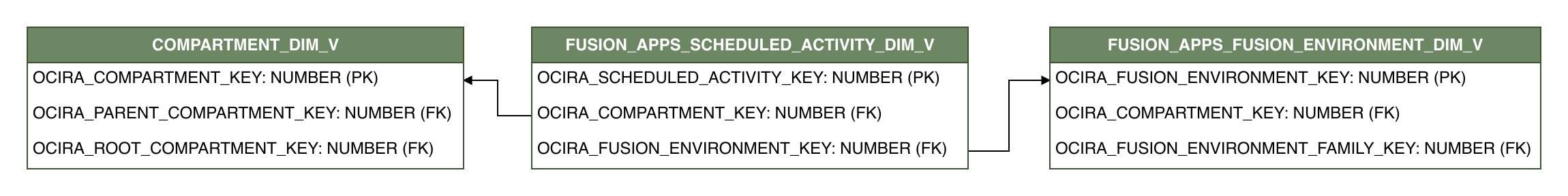

FUSION_APPS_SCHEDULED_ACTIVITY_DIM_V

FUSION_APPS_SERVICE_ATTACHMENT_DIM_V

Sample queries for Fusion Applications Environment Management.

SELECT
    FUSION_ENVIRONMENT_FAMILY_ID,
    COUNT(FUSION_ENVIRONMENT_ID) AS FUSION_ENVIRONMENT_COUNT
FROM OCIRA.FUSION_APPS_FUSION_ENVIRONMENT_FACT_V F
GROUP BY FUSION_ENVIRONMENT_FAMILY_ID;

The Customer Experience Semantic Model Lineage spreadsheet and Metric Calculation Logic spreadsheet for Fusion Applications Environment Management provides an end-to-end data lineage summary report for physical and logical relationships in your data.

For more information, see Data Lineage.

This section provides information on the subject areas with data you maintain in Fusion Applications Environment Management. These subject areas, with their corresponding data, are available for you to use when creating and editing analyses and reports. The information for each subject area includes:

• Description of the subject area.

• Business questions that can be answered by data in the subject area, with a link to more detailed information about each business question.

• Job-specific groups and duty roles that can be used to secure access to the subject area, with a link to more detailed information about each job role and duty role.

• Primary navigation to the work area that's represented by the subject area.

• Time reporting considerations in using the subject area, such as whether the subject area reports historical data or only the current data. Historical reporting refers to reporting on historical transactional data in a subject area. With a few exceptions, all dimensional data are current as of the primary transaction dates or system date.

• The lowest grain of transactional data in a subject area. The lowest transactional data grain decides how data are joined in a report.

• Special considerations, tips, and things to look out for in using the subject area to create analyses and reports.
