API Gateway

OCI API Gateway creates governed HTTP/S interfaces for OCI services and backends, with policy enforcement such as authentication and rate limiting. This subject area enables tracking API gateways, gateway APIs, and gateway deployments, including endpoint type, lifecycle, tenancy, compartment, region, and creation activity attributes.

Business Questions

The subject area can answer the following business questions:

  • How many gateways, APIs, and deployments exist by tenancy, compartment, or region?
  • How have gateway counts changed over time?
  • Which gateways or deployments are active or in another lifecycle state?
  • Which endpoint types are represented across gateways?

Logical Model

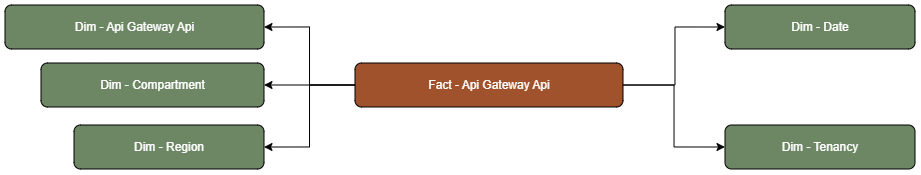

The model centers on Fact - Api Gateway Api and joins to API Gateway model, compartment, date, region, and tenancy dimensions.


The API Gateway Api fact table is connected to dimension tables.

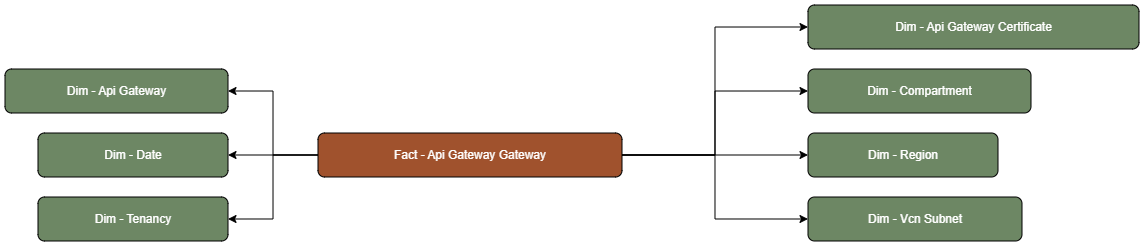

The model centers on Fact - Api Gateway Gateway and joins to API Gateway model, API Gateway certificate, VCN Subnet, compartment, date, region, and tenancy dimensions.


The API Gateway Gateway fact table is connected to dimension tables.

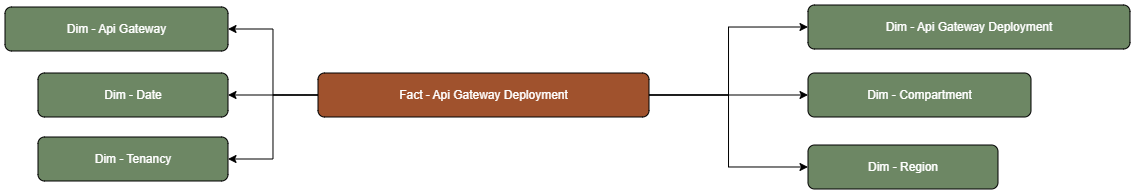

The model centers on Fact - Api Gateway Deployment and joins to API Gateway model, API Gateway deployment, compartment, date, region, and tenancy dimensions.


The API Gateway Deployment fact table is connected to dimension tables.

Metric Details

The visible presentation fact tables show the following metrics:

Metric Details for API Gateway
Fact Folder Metric Definition
Api Gateway Api Api Gateway Api Count COUNT metric from Fact - Gateway Api.
Api Gateway Gateway Api Gateway Gateway Count COUNT metric from Fact - Gateway.
Api Gateway Deployment Api Gateway Deployment Count COUNT metric from Fact - Gateway Deployment.
