Cloud Bridge
OCI Cloud Bridge provides discovery and migration capabilities for external environments through Cloud Bridge agents and environments. This subject area enables tracking Cloud Bridge agents, including agent type, agent version, associated environment, lifecycle state, tenancy, compartment, region, and creation activity.
Business Questions
The subject area can answer the following business questions:
- How many Cloud Bridge agents exist by tenancy, compartment, region, or environment?
- How has the Cloud Bridge agent count changed over time?
- Which agent types and versions are deployed?
- Which agents are active or in another lifecycle state?
- Which environments have agent coverage?
Logical Model

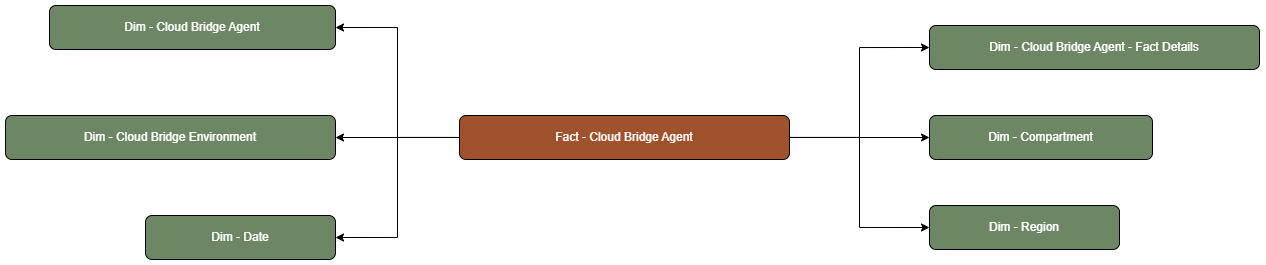

The model centers on Fact - Cloud Bridge Agent and joins to Cloud Bridge agent, fact details, environment, compartment, date, and region dimensions.
Metric Details
The visible presentation fact table in this subject area shows the following metrics:
| Fact Folder | Metric | Definition |
|---|---|---|
| Cloud Bridge Agent | Cloud Bridge Agent Count | COUNT visible presentation metric from Fact - Cloud Bridge Agent. |
