Oracle Cloud Infrastructure Documentation

DNS and Traffic Management

OCI DNS and Traffic Management helps create and manage DNS zones, including public DNS resources. This subject area enables tracking DNS resolvers and DNS zones, including scope, zone type, lifecycle, tenancy, compartment, region, and creation activity attributes.

Business Questions

The subject area can answer the following business questions:

  • How many DNS zones and resolvers exist by tenancy, compartment, or region?
  • How have DNS zone and resolver counts changed over time?
  • How are DNS zones distributed by scope or zone type?
  • Which VCNs are associated with resolvers?

Logical Model

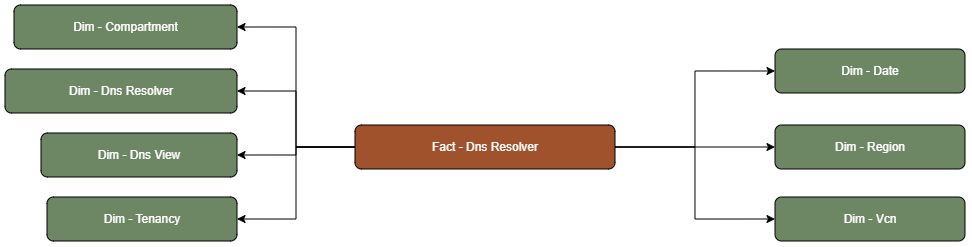

Fact - Dns Resolver

The model centers on Fact - Dns Resolver and joins to DNS resolver, DNS view, VCN, compartment, date, region, and tenancy dimensions.


The DNS Dns Resolver fact table is connected to dimension tables.

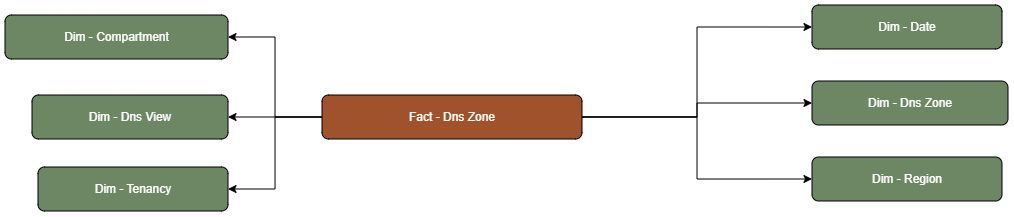

Fact - Dns Zone

The model centers on Fact - Dns Zone and joins to DNS zone, DNS view, compartment, date, region, and tenancy dimensions.


The DNS Dns Zone fact table is connected to dimension tables.

Metric Details

Metric Details for DNS and Traffic Management
Fact Folder Metric Definition
Dns Resolver Dns Resolver Count COUNT metric from Fact - Dns Resolver.
Dns Zone Dns Zone Count COUNT metric from Fact - Dns Zone.
