Reference for Visual Builder

This section provides information about views within OCI Resource Analytics Visual Builder and their columns, data types, keys, and the referred view and column names. The following views are available:

The suffixes in the view names specify the view type:

• FACT_V: Fact
• DIM_V: Dimension

This section provides diagrams that define the logical relationship of a fact table with different dimension tables.

The contents of each view and their relationships are listed in the following file: Visual Builder views.

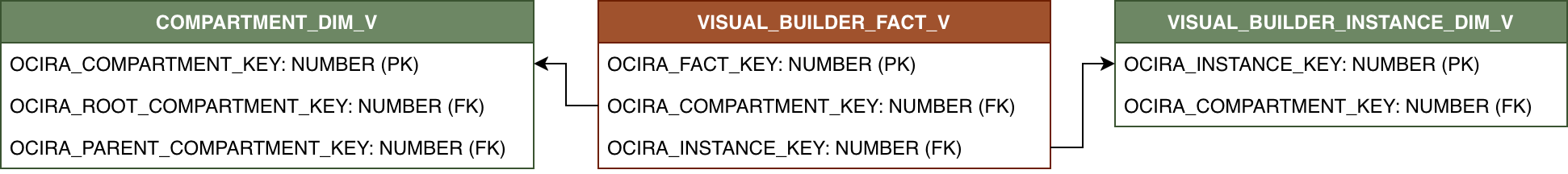

VISUAL_BUILDER_FACT_V

Sample queries for Visual Builder.

Show inactive Visual Builder instances and their node count.

SELECT
    INSTANCE_ID,
	NODE_COUNT
FROM OCIRA.VISUAL_BUILDER_FACT_V F
WHERE LIFECYCLE_STATE != 'ACTIVE';

The Customer Experience Semantic Model Lineage spreadsheet and Metric Calculation Logic spreadsheet for Visual Builder provides an end-to-end data lineage summary report for physical and logical relationships in your data.

For more information, see Data Lineage.

This section provides information on the subject areas with data you maintain in Visual Builder. These subject areas, with their corresponding data, are available for you to use when creating and editing analyses and reports. The information for each subject area includes:

• Description of the subject area.

• Business questions that can be answered by data in the subject area, with a link to more detailed information about each business question.

• Job-specific groups and duty roles that can be used to secure access to the subject area, with a link to more detailed information about each job role and duty role.

• Primary navigation to the work area that's represented by the subject area.

• Time reporting considerations in using the subject area, such as whether the subject area reports historical data or only the current data. Historical reporting refers to reporting on historical transactional data in a subject area. With a few exceptions, all dimensional data are current as of the primary transaction dates or system date.

• The lowest grain of transactional data in a subject area. The lowest transactional data grain decides how data are joined in a report.

• Special considerations, tips, and things to look out for in using the subject area to create analyses and reports.

This section provides other references related to Visual Builder.

Oracle Cloud Infrastructure Documentation / API Reference

• Visual Builder Documentation
• VbInstance Reference
