Stop and Start an Oracle Integration Instance

You can stop and start Oracle Integration 3 instances. After a stop request is initiated, the instance goes into a pausing state. During the pausing state, no new integrations and processes are started. In-flight integrations and processes continue until they either complete or reach a checkpoint. When the integrations and processes are no longer running, the instance goes into a completely paused state. While the instance is in this state, Oracle Integration design time, settings, and monitoring features are unavailable.

Note

  • Oracle recommends that you do not stop instances running in a production environment.
  • Oracle recommends that you do not stop or start instances on a nightly basis. During routine maintenance patching, lifecycle operations are disabled. This may lead to a situation where the service instance cannot be started or stopped for several hours while the patching cycle completes.
  1. Start or stop an instance in either of two ways:

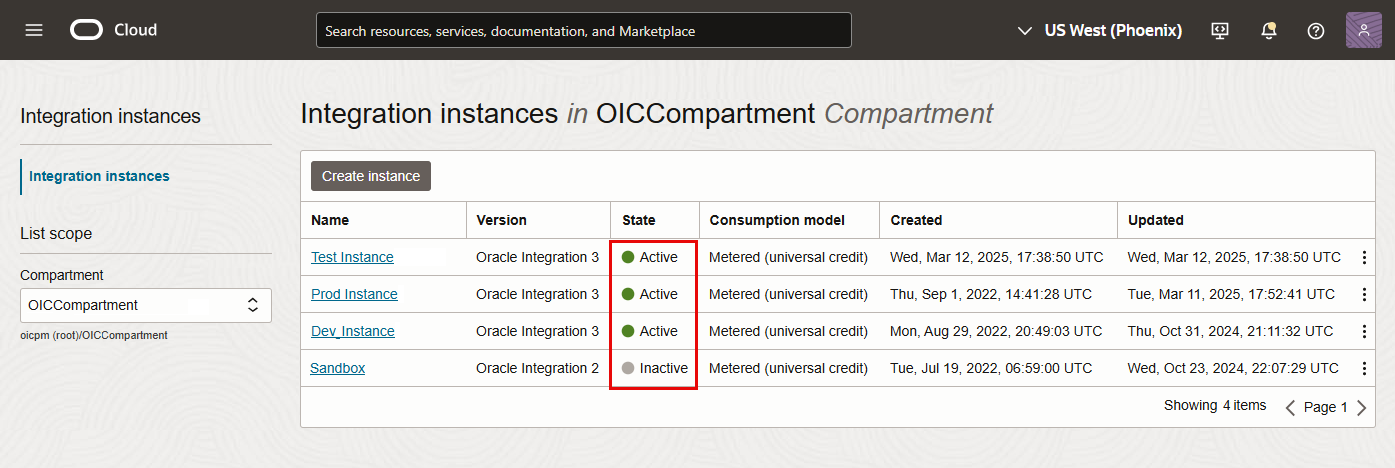

    1. On the Integration Instances page, go to the end of the row for the specific instance, and click Task menu. Note that an active instance is identified as Active and an inactive/stopped instance is identified as Inactive in the State column.
    2. On the details page of a specific instance, select More Actions menu.
  2. Select the action to perform:
    1. To stop your instance, select Stop, then select Stop again when prompted to confirm your selection.

      The instance state changes to Updating during the pausing process. When complete, the state changes to Inactive in the State column.

      This action causes the following to occur:
      • For Oracle Integration users, billing is paused for the duration that the instance is paused.
      • For Oracle Integration for SaaS users, billing is not impacted by pausing an instance.
      • Integration endpoints are paused.
      • Process instances are paused.
      • Runtime is paused.
      • Scheduled integrations do not execute.
      • Database purging continues to run.
      • REST APIs are unavailable for use. If you attempt to use the APIs while your instance is in a paused state, you receive a 409 error.
      • Design time is not available for use. If you access the Oracle Cloud Infrastructure Console, it displays a page indicating the stopped state and asks you to start the instance for the console to become available.
      • You cannot stop an instance if patching is in progress.
    2. To resume your instance, select Start, then select Start again when prompted to confirm your selection.
      Note

      You cannot start an instance when maintenance and security patching are in progress.

      The instance state changes to Updating during the resumption. When complete, the state changes to Active in the State column.

Note

You can use the REST APIs to stop and start an instance. See Oracle Integration API. Oracle Integration APIs are available in the left navigation pane.
