Test Suites and Test Cases

You can create a test case for different use cases. You create one of these test cases from JSON or by recording conversations in the Conversation Tester. These test cases are part of the skill's metadata so they persist across versions.

Because of this, you can run these test cases to ensure that any extensions made to the skill have not broken the basic functionality. Test cases are not limited to just preserving the core functions. You use them to test out new scenarios. As your skill evolves, you can retire the test cases that continually fail because of the changes that were introduced through extensions.

All test cases belong to a test suite, containers that enable you to partition your testing. We provide a test suite called Default Test Suite, but you can create your own as well. The Test Suites page lists all of the test suites and the test cases that belong to them. The test suites listed on this page may be ones that you have created, or they may have been inherited from a skill that you've extended or cloned. You can use this page to create and manage test suites and test cases and compile test cases into test runs.
Description of test_suites.png follows

Add Test Cases

Whether you're creating a skill from scratch, or extending a skill, you can create a test case for each use case. For example, you can create a test case for each payload type. You can build an entire suite of test cases for a skill by simply recording conversations or by creating JSON files that define message objects.

Create a Test Case from a Conversation

Recording conversations is quicker and less error prone than defining a JSON file. To create a test case from a conversation:
  1. Open the skill or digital assistant that you want to create the test for.
  2. In the toolbar at the top of the page, click Preview.
    This is an image of the Preview icon in the top margin.

  3. Click Bot Tester.
  4. Select the channel.
    Note

    Test cases are channel-specific: the test conversation, as it is handled by the selected channel, is what is recorded for a test case. For example, test cases recorded using one of the Skill Tester's text-based channels cannot be used to test the same convesation on the Oracle Web Channel.
  5. Enter the utterances that are specific to the behavior or output that you want to test.

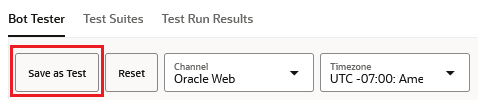

  6. Click Save As Test.
    An image of the Save as Test button

  7. Complete the Save Conversation as Test Case dialog:
    • If needed, exlude the test case from test runs by switching off Enabled.
    • If you're running a test case for conversations or messages that have postback actions, you can switch on Ignore Postback Variables to enable the test case to pass by ignoring the differences between the expected message and the actual message at the postback variable level.
    • Enter a name and display name that describes the test.
    • As an optional step, add details in the Description field that describe how the test case validates expected behavior for a scenario or use case.
    • If needed, select a test suite other than Default Test Suite from the Test Suite list.
    • To test for the different parameter values that users may enter in their requests or responses, add arrays to the object in the Input Parameters field for each input parameter and substitute corresponding placeholders for the user input you're testing for in the Conversation text area. For example, enter an array {"AGE":["24","25","26"]} in the Input Parameters field and ${"AGE"} (the placeholder) in the Conversation text area.
    • If the skill or digital assistant responses include dynamic information like timestamps that will cause test cases to continually fail, replace the variable definition that populates these values with a placeholder that's formatted as ${MY_VARIBALE_NAME}.
  8. Click Add to Suite.
    Description of save_conversation_history_test_case.png follows

Add Input Parameters for User Messages

While you add variable placeholders to ensure that test cases pass when skill messages have constantly changing values, you add input parameters to test for a variety of values in user messages. Input parameters simplify testing because they enable you to run multiple variations of a single test case. Without them, you'd need to create duplicate test cases for each parameter value. Because of the flexibility afforded by input parameters, however, you can generate multiple test results by just adding an array for the input parameter values in your test case definition. When you run the test case, separate test results are generated for each of element in your input parameter array definition. An array of three input parameter key-value pairs results in a test run with three test outcomes, for example. The numbering of these results is based on the index of the corresponding array element.
Description of input_parameters_test_run_results.png follows

To add input parameters to your test case, you need to replace the text value in the message payload of the user message with a placeholder and define a corresponding array of parameter values:
  1. In the Bot Tester view, click Save as Test.
  2. In the Conversation text area, replace the text field value in a user message ({"source": "user", ...}) with an Apache FreeMarker expression that names the input parameter. For example, "${AGE}" in the following snippet:
       {
            "source": "user",
            "messagePayload": {
                "type": "text",
                "text": "${AGE}",
                "channelExtensions": {
                    "test": {
                        "timezoneOffset": 25200000
                    }
                }
            }
        },
  3. Click An image of the arrow symbol that expands the field.to expand the Input Parameters field.
    The arrow icon for expanding the field.

  4. In the Input Parameters field object ({}), add key value pairs for each parameter. The values must be arrays of string values. For example:
    {"AGE":["24","25","26"], "CRUST": ["Thick","Thin"]}

    Description of input_parameters_added.png follows

    Here are some things to note when defining input parameters:
    • Use arrays only – Input parameters must be set as arrays, not strings. {"NAME": "Mark"} results in a failed test outcome, for example.
    • Use string values in your array – All the array elements must be strings. If you enter an element as an integer value instead ({"AGE": ["25", 26]}, for example), it will be converted to a string. No test results are generated for null values. { "AGE": [ "24", "25", null ] } results in two test results, not three.
    • Use consistent casing – The casing for the key and the placeholder in the FreeMarker expression must match. Mismatched casing (Age and AGE, for example), will cause the test case to fail.
  5. Click Add to Suite.

Add Variable Placeholders

Variables with ever-changing values in skill or digital assistant responses will cause test cases to fail when the test run compares the actual value to the expected value. You can exclude dynamic information from the comparison by substituting a placeholder that's formatted as ${MY_VARIBALE_NAME} in the skill response. For example, a temporal value, such as the one returned by the ${.now?string.full} Apache FreeMarker date operation, will cause test cases to continually fail because of the mismatch of the time when the test case was recorded and the time when the test case was run.
Description of view_variable_value_difference.png follows

To enable these test cases to pass, replace the clashing time value in the bot messagePayload object in the Conversation text area with a placeholder. For example, ${ORDER_TIME} replaces a date string like Monday, April 8, 2024 7:42:46 PM UTC in the following:
{
        "source": "bot",
        "messagePayload": {
            "type": "text",
            "text": "You placed an order at ${ORDER_TIME} for a large Veggie pizza on thin crust. Your order will be delivered to your home at 04:30 PM."
        }
    }

Description of test_case_variable.png follows

Note

For newly created test cases, the Variable field notes the SYSTEM_BOT_ID placeholder that's automatically substituted for the system.botId values that change when the skill has been imported from another instance or cloned.

Create a Test Case from a JSON Object

You create a test case from an array object of message objects by first clicking + Test Case in the Test Suite page and then by completing the New Test Case dialog. The properties are the same as those for recorded test cases except that you must complete the array ([]) Conversations window with the message objects. Here is template for the different payload types:
    {
        source: "user",             //text only message format is kept simple yet extensible.
        type: "text"
        payload: {
            message: "order pizza"
        }
    },{
        source: "bot",
        type: "text",
        payload: {
            message: "how old are you?"
            actions: [action types --- postback, url, call, share],  //bot messages can have actions and globalActions which when clicked by the user to send specific JSON back to the bot.
            globalActions: [...]
        }
    },
    {
        source: "user",
        type: "postback"
        payload: {      //payload object represents the post back JSON sent back from the user to the bot when the button is clicked
            variables: {
                accountType: "credit card"
            },
            action: "credit card",
            state: "askBalancesAccountType"
        }
    },
    {
        source: "bot",
        type: "cards"
        payload: {
            message: "label"
            layout: "horizontal|vertical"
            cards: ["Thick","Thin","Stuffed","Pan"],    // In test files cards can be strings which are matched with button labels or be JSON matched
            cards: [{
                title: "...",
                description: "..."
                imageUrl: "...",
                url: "...",
                actions: [...]  //actions can be specific to a card or global
            }],
            actions: [...],
            globalActions: [...]
        }

    },
    {
        source: "bot|user",
        type: "attachment"  //attachment message could be either a bot message or a user message
        payload: {
            attachmentType: "image|video|audio|file"
            url: "https://images.app.goo.gl/FADBknkmvsmfVzax9"
            title: "Title for Attachment"
        }
    },
    {
        source: "bot",
        type: "location"
        payload: {
            message: "optional label here"
            latitude: 52.2968189
            longitude: 4.8638949
        }
    },
    {
        source: "user",
        type: "raw"
        payload: {
            ... //free form application specific JSON for custom use cases. Exact JSON matching
        }
    }
    ...
    //multiple bot messages per user message possible.]
}


Run Test Cases

You can create test runs for a single test case, a subset of test cases, or for the entire set of test cases that are listed in the Test Suite page. As your skill evolves, you may need to retire test cases that are bound to fail because of the changes that were deliberately made to a skill. You also temporarily disable a test case because of ongoing development.
Note

You can't delete an inherited test case, you can only disable it.
After the test run completes, click the Test Run Results tab to find out which of the test cases passed or failed.
Description of test_run_results.png follows

View Test Run Results

The Test Run Results page lists the recently executed test runs and their results. The test cases compiled into the test run either pass or fail according to a comparison of the expected output that's recorded in the test case definition and the actual output. If the two match, the test case passes. If they don't, the test case fails. When test cases fail, you can find out why by clicking View Differences.
The View Differences button

Note

The test run results for each skill are stored for a period of 14 days, after which they are removed from the system.

Review Failed Test Cases

The report lists the points of failure at the message level, with the Message Element column noting the position of the skill message within the test case conversation. For each message, the report provides a high-level comparison of the expected and actual payloads. To drill down to see this comparison in detail – and to reconcile the differences to allow this test case to pass in future test runs – click the Actions menu.
Description of top_level_menu.png follows

Fix Failed Test Cases

When needed, you can use the Apply Actual Value, Ignore Difference, and Add actions to fix a test case (or portions of a test case) to prevent it from failing the next time it's run. The options in the Actions menu are node-specific, so the actions at the message level differ from those at lower points on the traversal.
  • Expand All – Expands the message object nodes.
  • View Difference – Provides a side-by-side comparison of the actual and expected output. The view varies depending on the node. For example, you can view a single action, or the entire actions array. You can use this action before you reconcile the actual and expected output.
    Description of view_difference_message_level.png follows

  • Ignore Difference – Choose this action when clashing values don’t affect the functionality. If you have multiple differences and you don't want to go through them one-by-one, you can choose this option. At the postback level, for example, you can apply actual values individually, or you can ignore differences for the whole postback object.
  • Apply Actual Value – Some changes, however small, can cause many of the test cases to fail within the same run. This is often the case with changes to text strings such as prompts or labels. For example, changing a text prompt from "How big of a pizza do you want?" to "What pizza size?" will cause any test case that includes this prompt to fail, even though the skill's functionality remains unaffected. While you can accommodate this change by either re-recording the test case entirely, you can instead quickly update the test case definition with the revised prompt by clicking Apply Actual Value. Because the test case is now in step with the new skill definition, the test case will pass (or at least not fail because of the changed wording) in future test runs.
    Note

    While you can apply string values, such as prompts and URLs, you can't use the Apply Actual Value to fix a test case when a change to an entity's values or its behavior (disabling the Out of Order Extraction function, for example) causes the values provided by the test case to become invalid. Updating an entity will cause the case will fail because the skill will continually prompt for a value that it will never receive and its responses will be out of step with the sequence defined by the test case.
  • Add Regular Expression – You can substitute a Regex expression to resolve clashing text values. For example, you add user* to resolve conflicting user and user1 strings.
  • Add – At the postback level of the traversal, Add actions appear when a revised skill includes postback actions that were not present in the test case. To prevent the test case from failing because of the new postback action, you can click Add to include it in the test case. (Add is similar to Apply Actual Value, but at the postback level.)
Note

The set of test results generated for input parameters all refer to the same original test case, so reconciling an input parameter value in one test result simultaneously reconciles the values for that input parameter in the rest of the test results.

Import and Export Test Cases

You can import tests suites from one version of the skill to another when you're developing parallel versions of the same skill or working with clones.
  1. To export a test suite, first select the test suite (or test suites). Then click More > Export Selected Suite, or Export All. (You can also export all test suites by selecting Export Tests from the kebab menu
    This is the kebab menu.

    in the skill tile.) The exported ZIP file contains a folder called testSuites that has a JSON file describing the exported test suite. Here's an example of the JSON format:
    {
      "displayName" : "TestSuite0001",
      "name" : "TestSuite0001",
      "testCases" : [ {
        "channelType" : "websdk",
        "conversation" : [ {
          "messagePayload" : {
            "type" : "text",
            "text" : "I would like a large veggie pizza on thin crust delivered at 4:30 pm",
            "channelExtensions" : {
              "test" : {
                "timezoneOffset" : 25200000
              }
            }
          },
          "source" : "user"
        }, {
          "messagePayload" : {
            "type" : "text",
            "text" : "Let's get started with that order"
          },
          "source" : "bot"
        }, {
          "messagePayload" : {
            "type" : "text",
            "text" : "How old are you?"
          },
          "source" : "bot"
        }, {
          "messagePayload" : {
            "type" : "text",
            "text" : "${AGE}",
            "channelExtensions" : {
              "test" : {
                "timezoneOffset" : 25200000
              }
            }
          },
          "source" : "user"
        }, {
          "messagePayload" : {
            "type" : "text",
            "text" : "You placed an order at ${ORDER_TIME} for a large Veggie pizza on thin crust. Your order will be delivered to your home at 04:30 PM."
          },
          "source" : "bot"
        } ],
        "description" : "Tests all values with a single utterance. Uses input parameters and variable values",
        "displayName" : "Full Utterance Test",
        "enabled" : true,
        "inputParameters" : {
          "AGE" : [ "24", "25", "26" ]
        },
        "name" : "FullUtteranceTest",
        "platformVersion" : "1.0",
        "trackingId" : "A0AAA5E2-5AAD-4002-BEE0-F5D310D666FD"
      } ],
      "trackingId" : "4B6AABC7-3A65-4E27-8D90-71E7B3C5264B"
    }
  2. Open the Test Suites page of the target skill, then click More > Import.
  3. Browse to, then select, the ZIP file containing the JSON definition of the test suites. Then click Upload.
  4. After the import has completed, click Download Report in the Confirmation notification to find out more details about the import in the JSON file that's included in the downloaded ZIP file.
    The Download Report link in the notification message.

    For example:
    {
      "status" : "SUCCESS",
      "statusMessage" : "Successfully imported test cases and test suites. Duplicate and invalid test cases/test suites ignored.",
      "truncatedDescription" : false,
      "validTestSuites" : 2,
      "duplicateTestSuites" : 0,
      "invalidTestSuites" : 0,
      "validTestCases" : 2,
      "duplicateTestCases" : 0,
      "invalidTestCases" : 0,
      "validationDetails" : [ {
        "name" : "DefaultTestSuite",
        "validTestCases" : 1,
        "duplicateTestCases" : 0,
        "invalidTestCases" : 0,
        "invalidReasons" : [ ],
        "warningReasons" : [ ],
        "testCasesValidationDetails" : [ {
          "name" : "Test1",
          "invalidReasons" : [ ],
          "warningReasons" : [ ]
        } ]
      }, {
        "name" : "TestSuite0001",
        "validTestCases" : 1,
        "duplicateTestCases" : 0,
        "invalidTestCases" : 0,
        "invalidReasons" : [ ],
        "warningReasons" : [ ],
        "testCasesValidationDetails" : [ {
          "name" : "Test2",
          "invalidReasons" : [ ],
          "warningReasons" : [ ]
        } ]
      } ]
    }
You can only import valid test cases.
The warning dialog for invalid test case imports

To find the cause of the failed outcome, review the invalidReasons array in the downloaded importJSON file.
    "testCasesValidationDetails" : [ {
      "name" : "Test",
      "invalidReasons" : [ "INVALID_INPUT_PARAMETERS" ],
   ...
