Often, the logs would not contain all the required information to consolidate the analysis. In such cases, you can create a lookup table to pickup the information that you have already collated to make more sense of the data in the logs. For example, the Error ID field in log events doesn’t provide a description of the errors. You can create a lookup that maps Error ID to descriptions, and then use the Field Enrichment options to make the descriptions available to search in the log records. Some example scenarios where you could create lookups:

• Product inventory: Product ID, technical specifications, price, available stock, rack number
• Employee information: Employee ID, Personal information, organization, role, scale, salary, manager
• Library reference: Tile, author, summary, edition, previous editions, price

In the following lookup query, the error message is picked up from the lookup table ORA Error Messages by mapping the Error ID field, and displayed in a summary table along with other fields like log source and entity:

'Error ID' like 'ORA%' | lookup table = 'ORA Error Messages' select errmsg using 'Error ID' = errid | fields -*, 'Log Source', Entity, errmg

• Information from the logs:
  • Error ID: Error ID as mentioned in the logs specified in the form ORA%
  • Log Source: The log source of the logs
  • Entity: The entity of the logs
• Information from the Oracle-defined lookup table ORA Error Messages:
  • errid: The error ID specified in the form ORA%
  • errmsg: The error message for the error ID

  The other details available in the ORA Error Messages lookup table are errcause (Error Cause) and erraction (Error Action) for each error ID. To view the contents of the lookup table, use the searchlookup command as follows:

  * | searchlookup table = 'ORA Error Messages'

1. Open the navigation menu and click Observability & Management. Under Logging Analytics, click Administration. The Administration Overview page opens.

2. The administration resources are listed in the left hand navigation pane under Resources. Click Lookups.

3. Under Lookups, click on the lookup whose details you want to view.

   The Lookup Detail page displays the details that you had provided while creating it, and also the content of the lookup table.

To perform other actions on the lookup, in the Lookups listing page, select the Type and Creation Type of your lookup, and narrow down your search for your lookup in the Filters section. After identifying your lookup, click Actions icon in the row of your lookup:

• Reupload File: In case of user-created lookups, if you have a new version of the lookup table, or if a previous upload has failed, then you can reupload it.

• Delete: You may have to delete some of your old or unused lookups. To delete the lookup, confirm in the Delete Lookup dialog box. You can delete a lookup only if it is user-created.

1. Update your CSV file with the field-value combinations.

2. Open the navigation menu and click Observability & Management. Under Logging Analytics, click Administration. The Administration Overview page opens.

3. The administration resources are listed in the left hand navigation pane under Resources. Click Lookups.

4. Under Lookups, click the Actions icon in the row that corresponds to the lookup that you want to update, click Reupload File.

   The Reupload File dialog box opens.

5. Select the updated lookup CSV file that you had created earlier, and click Upload.

After creating the simple lookup, run a query with the searchlookup command to list the values in the lookup, and use the lookup command in a query to map the output fields to those values.

1. Create a lookup CSV file with the field-value combinations. For example, to create a lookup that maps Error ID to descriptions:

   errid,description
   02323,Network Not Reachable
   09912,User Activity
   12322,Out of Memory

   Note that the first row is the header with errid and description titles for the values in the subsequent rows.

2. Open the navigation menu and click Observability & Management. Under Logging Analytics, click Administration. The Administration Overview page opens.

3. The administration resources are listed in the left hand navigation pane under Resources. Click Lookups.

4. Under Lookups, click Create Lookup.

5. In the Lookup page, enter the name of the lookup, such as server error code lookups and an optional description.

6. Under Type, select Simple.

7. Select the lookup CSV file that you had created earlier, and click Create.

After creating the Dictionary type lookup, use searchlookup command to list the lookups. Use the lookup command to map to the fields with any query only after using the link or cluster commands in the query.

Operator,Condition,Network Name
CIDRMATCH,192.0.2.10/24,Database Network

Operator,Condition,Label,Module
# ----------------------------------
# Startup/Shutdown and Terminations
# ----------------------------------
CONTAINS,Server started in RUNNING mode,Server Started,WebLogic Server
CONTAINS,A critical service failed. The server will shut itself down,Server Shutdown,WebLogic Server
CONTAINS,state changed to FAILED,Server Failed,
CONTAINS,Removing .* from cluster view due to PeerGone,Cluster Removed,WebLogic Server
# ----------------------
# Connection Error / Timeouts and Slowness
# ----------------------
CONTAINS,Unable to connect to WSM policy manager,WSM Policy Manager Connection Error,
CONTAINS REGEX,java.sql.SQLTimeoutException: \S+: user requested cancel of current operation,SQL Timeout,Database
CONTAINS,This member is running extremely slowly and may endanger the rest of the cluster,WebLogic Cluster Slowness,WebLogic Server

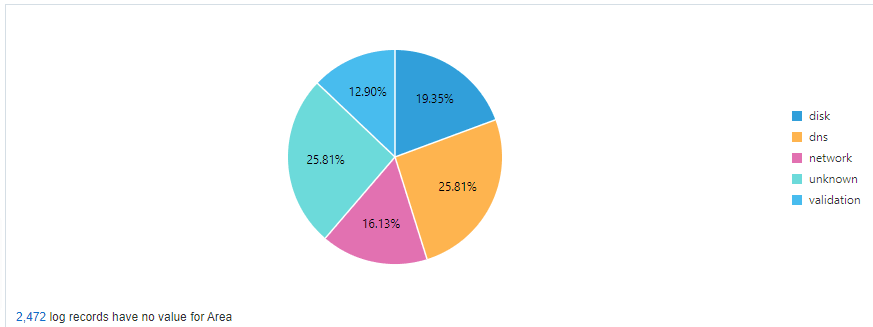

You can use the same dictionary in multiple queries. For example, the following query applies the same dictionary to the Message field and shows the rolled up results using the Pie Chart visualization:

'Log Source' = 'Linux Syslog Logs'
| lookup table = 'Linux Error Categories' select Issue, Area using Message
| stats count by Area
